07 Headlight removal instructions with pics

mags

Full Member
Joined
Apr 8, 2012
Messages
62
Location
Bradford,Pa.
If I may add, it`s a good idea to put tape on all painted surfaces around the light, so you don`t mark the paint by accident. Mags/Nick


LithuanianEvil

Full Member
Joined
Apr 1, 2012
Messages
16
Location
Bentonville,AR (NWA)
Instructions worked perfect for me  (y) You don't need to take out whole headlight, just get gap enough for hand to locate connectors. Good job me  >:D Ambers installed and works perfect  :B:


Eggshop

Full Member
Joined
Aug 15, 2012
Messages
53

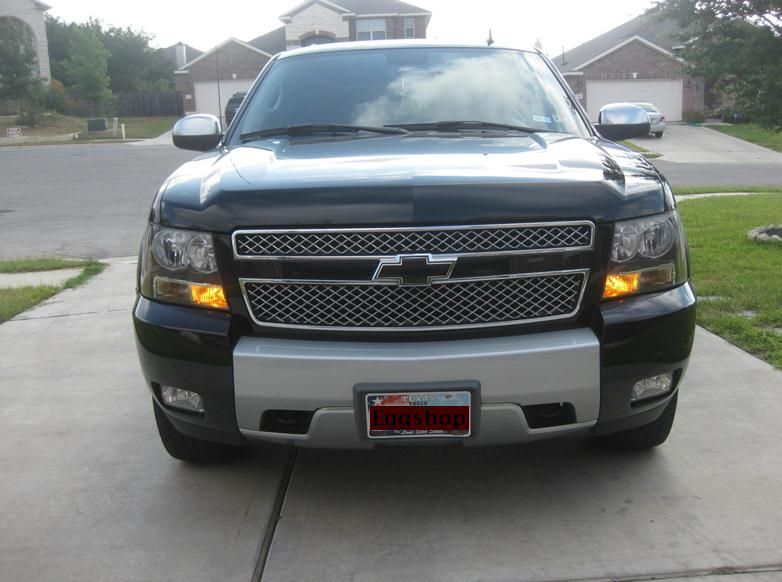

Ok so I finally did mine, great step by step info, be sure to place a soft piece of cloth on the bumper to avoid scratching.


Loggie

Charter Member
PM 2021
PM 2020
PM 2019
PM 2018
PM 2017
PM 2016
PM 2015
PM 2014
PM 2013
PM 2012
SM 2011
SM 2010
SM 2009
SM 2008
SM 2007
SM 2006
SM 2005
SM 2004
SM 2003
Full Member
Joined
Jul 11, 2002
Messages
13,772
Location
Hampton VA (Langley AFB)
What a PIA getting this done.  Good instructions but DANG :E:


DouglasOak

Cruise Coord
SM 2014
SM 2013
SM 2012
SM 2011
Full Member
Joined
Aug 9, 2011
Messages
2,349
Location
Windsor, Ontario
Loggie said:
What a PIA getting this done.  Good instructions but DANG :E:
If you want to wait till Hotlanta,I have done several amber DRL's without removing the headlight. Loosen all the 10mm bolts on the upper grill and upper headlights then squeeze my skinny lil' arms in to twist the old DRL's out and install the ambers. Quick and Painless!!


Loggie

Charter Member
PM 2021
PM 2020
PM 2019
PM 2018
PM 2017
PM 2016
PM 2015
PM 2014
PM 2013
PM 2012
SM 2011
SM 2010
SM 2009
SM 2008
SM 2007
SM 2006
SM 2005
SM 2004
SM 2003
Full Member
Joined
Jul 11, 2002
Messages
13,772
Location
Hampton VA (Langley AFB)
DouglasOak said:
If you want to wait till Hotlanta,I have done several amber DRL's without removing the headlight. Loosen all the 10mm bolts on the upper grill and upper headlights then squeeze my skinny lil' arms in to twist the old DRL's out and install the ambers. Quick and Painless!!

lol yeah....done now and I have not had the time to see if they even work yet.  I go into work its dark and I come home its dark :E: military life killing me  >:D


maio

Full Member
Joined
Jul 4, 2007
Messages
35
Location
Auburn, MA
Did the Amber's years ago with these instructions and they are great.  Just did the low beam on the drivers side in less than 5 mins. Take out top two 10mm bolts on headlight and it will move about a 1/2 inch, reach in behind around washer fluid and turn Lowbeam socket counter clockwise 1/4 turn, pull out , change bulb, reverse to put in. cleanup takes longer than bulb change.


zo6man1

Full Member
Joined
Jan 15, 2011
Messages
70
Location
Washington
just saw of course after I installed my new amber's hope I didn't f anything up since I didn't undo the bumper bracket or basically anything except remove the top 6 bolts to get to the lights  :E:


pktwatch

SM 2012
SM 2011
SM 2010
SM 2009
SM 2008
SM 2007
SM 2006
SM 2004
SM 2003
Full Member
Joined
Sep 23, 2002
Messages
18,086
Location
Emporia, Indiana
DouglasOak said:
If you want to wait till Hotlanta,I have done several amber DRL's without removing the headlight. Loosen all the 10mm bolts on the upper grill and upper headlights then squeeze my skinny lil' arms in to twist the old DRL's out and install the ambers. Quick and Painless!!

If you tell me what bulbs to buy I will let you install my ambers at the Holiday Dinner!  >:D


DouglasOak

Cruise Coord
SM 2014
SM 2013
SM 2012
SM 2011
Full Member
Joined
Aug 9, 2011
Messages
2,349
Location
Windsor, Ontario
Z66 BUTCH said:
If you tell me what bulbs to buy I will let you install my ambers at the Holiday Dinner!  >:D

3157 or 4157 NALL (NA = Amber / LL = Long Life) Always get long life bulbs you don't wanna change em too often!
I'll bring my 10mm and my skinny little circus show arms!


pktwatch

SM 2012
SM 2011
SM 2010
SM 2009
SM 2008
SM 2007
SM 2006
SM 2004
SM 2003
Full Member
Joined
Sep 23, 2002
Messages
18,086
Location
Emporia, Indiana
DouglasOak said:
3157 or 4157 NALL (NA = Amber / LL = Long Life) Always get long life bulbs you don't wanna change em too often!
I'll bring my 10mm and my skinny little circus show arms!

SWEET! I'll get the bulbs.


BCS

Full Member
Joined
Dec 8, 2004
Messages
131
What a pain in the balls....I havent tried it yet but my passenger low beam light went out yesterday


jravalanche

Full Member
Joined
Nov 9, 2006
Messages
22
Location
pacific ocean
Why is it that I can not view the pics?  Says I'm not coming from an authorized site.  Can you re post pics with your instructions.

Thanks
JR


Skybetta

Full Member
Joined
Dec 26, 2002
Messages
25
Location
North Carolina
Anybody happen to have the ambers in a 2013 Silver Ice Mattalic yet?  I had the ambers in my 2003 Dark Grey Mattalic and loved the look but not so sure about the look with the new truck.  I would just try them if it was as easy to swap them as it was in my 2003 but given the effort on these newer trucks was looking for the lazy way out. Thx


yendorLTZ09

PM 2017
SM 2010
Full Member
Joined
Feb 28, 2010
Messages
43
Location
Lafayette, LA
Thanks for the illustrated instructions on removal of headlights.

I went to get my 09 Avy inspected today, and was "failed" for having ambers instead of white lights for my daytime running lights.  I also had a burnt side marker light on the driver's side headlight assembly.

By the way, for anyone who needs to change out the side marker light, it is part #194LL or 194LF(Sylvannia).

So, I put my original white lights back in for my daytime running lights, and replaced the burnt side marker bulb, so I could pass the inspection.
It did take about 2 hours for me to do this, and I brought my Avy back to "pass" the inspection and get my Louisiana state inspection sticker.  I talked with the guy doing the inspection, and he told me he recently had to change out a bad HID bulb on an Escalade.  He followed the GM recommended procedure, and it took him about 2 hours also.


tinbad

Full Member
Joined
Aug 15, 2013
Messages
19
Location
East Bay Area, CA
This is a great and detailed writeup! Thanks!

I've changed mine using this video http://www.carcarekiosk.com/video/2008_Chevrolet_Avalanche_LT_5.3L_V8/lights/headlight which also helped a lot (especially when taking the headlight casing out at the right angle).


mark24v

PM 2015
PM 2014
Full Member
Joined
Jun 15, 2013
Messages
97
Location
Martensville,SK. Canada
Great write up helped loads. But i would like to get the guy who designed this headlight mount a slap and the the guy who OK it one as well  :beating:


DanGTO

PM 2014
Full Member
Joined
Nov 30, 2003
Messages
319
Looking forward to doing this.  You know, next year when it is warmer!

I'll probably do it when I get new tires on the 20s [from my 02] for the recent purchase.

Seems like painters tape mentioned will be a key on that bumper...

Looks like a pain, can't wait !  ;)


DouglasOak

Cruise Coord
SM 2014
SM 2013
SM 2012
SM 2011
Full Member
Joined
Aug 9, 2011
Messages
2,349
Location
Windsor, Ontario
DanGTO said:
Looking forward to doing this.  You know, next year when it is warmer!

DanGTO if you just wanna change out the DRL's to ambers, get a set of 3157/4157 NALL (make sure to get long life) bulbs, come to the Holiday Dinner... and I can swap them out for you real easy (skinny little circus freak arms)

http://chevyavalanchefanclub.com/cafcna/index.php/topic,140783.msg2042242.html#msg2042242

If you can't make it, I live 5 minutes from the bridge and am over in the D at least once a week for fuel and groceries...
maybe a mini modding session?

(It would also give me a great excuse to drool over the GXP!!)


LuvTheLanche

Full Member
Joined
Oct 25, 2013
Messages
17
Location
Pittsburgh
Agree that it's a great write-up - Thanks!

BUT, I cannot understand how GM could go from a great setup like in the 06 and earlier (pull 2 pins, pop the light out, replace bulb and slide everything back together in 2 minutes) to this ridiculous setup. I never had a vehicle that made it this difficult to replace ANY bulb!
